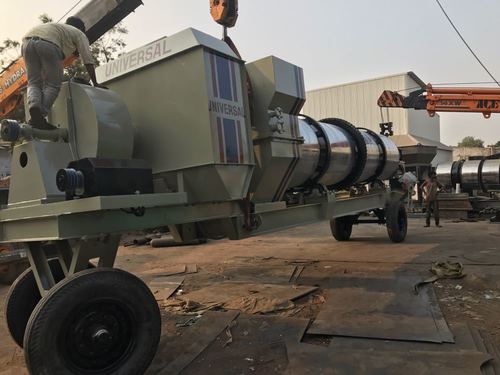

mobile asphalt drum mix plant

3100000 INR/Plant

Get a Price/Quote

Product Details:

Material Steel
Capacity 100 T/hr
Computerized Yes
Automatic Grade Automatic
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

mobile asphalt drum mix plant Price And Quantity

Minimum Order Quantity 1 Plant
Price Range 2500000.00 - 2700000.00 INR/Plant
Price 3100000 INR/Plant

mobile asphalt drum mix plant Product Specifications

Automatic Grade Automatic
Capacity 100 T/hr
Computerized Yes
Material Steel

mobile asphalt drum mix plant Trade Information

FOB Port Gujarat
Payment Terms Cash on Delivery (COD) Cash Against Delivery (CAD) Cash in Advance (CID) Cheque
Supply Ability 05 Plant Per Month
Delivery Time 01 Months
Main Export Market(s) Western Europe Australia Eastern Europe Middle East Central America South America Asia North America Africa
Main Domestic Market All India

Product Description

We are providing the customers with our mobile asphalt drum mix plant. The variable drive unit of feeder bins, pumping unit as well as mineral filler unit is synchronized with one another and with weighbridge to keep up the extent of all hot blend fixings according to set occupation blend formula. in addition, the fuel to the asphalt burner and drum is provided via pumping unit from fuel tank. The substantial residue is gathered by the multi cone sort dust assembly and the fumes are gone through wet scrubber sort contamination control unit prior to letting it free to the environment

Mobile Asphalt Hot Mix Plant Model Dm-35 Having Output Capacity 30-40 Tph	One Unit
3-Bin Feeder For Cold Aggregate With Individual Ac Electrical Motor Each Bin And Load Cell For Weighing Of Arrogate And Gathering Conveyor And One Vibratory Motor.	1 No.
Drum For Mix Unit With Pressure Jet Burner With Auto Temperature Controls Cyclone Efficient Dust Collector Systems With Motor.	1 No.
Slinger Conveyor To Feed Material From Feeder To Thermo Drum For Mixing,	1 No.
Inclined Load Out Conveyor With Hydraulic G.O.B. Hopper For Unloading Of Mix Material In Truck With Lump Form To Avoid Segregation.	1 No.
Ac Drive Control Panel For Operating Of The Plant.	1 No.
Single Deck Vibrator Screen For Removing Unwanted Materials.	1 No.
Asphalt Tank With Burner And Pumping Unit Cap. 15 Ton.(Main Tank)	1 No.
L.D.O Tank 1500 Ltrs.	1 No.
Heat & Dust Proof Cabin(8x6) (Without Air Conditioner)	1 No.
All Units Suitably Mounted On One Axle Complete With , Wheel Hubs, Trailer Towing Pins, Pneumatic Braking. Tyres, Tubes And Wheel Plates Not Included.	Set
Pre Wired With Cables, Socket, Plug, Junction Box To Interconnect The Units.	Set

Break Up Details As To Power And Size Required For Our Dm-35 Plant

Unit	Specification	Motor H.P	Price
Drying & Mixing Unit
Diameter Length Thickness Motor Gear Box Drive	1000 5000 8 Mm 20 H.P Ac/1500 Rpm 5 Nu 20:1 Rotary Drive	20 H.P Ac
Auto Control Burner
Capacity Motor (Blower) Motor (Pump) Drive	300 Ltrs/Hour 3.0 H.P Ac/2800 Rpm 1 Nos X 1.0 H.P Ac Coupled	3.0 H.P Ac 1.0 H.P Ac
Dust Collector
Motor (Outlet Screw) Motor (Exhaust) Gear Box	H.P Ac/1500 Rpm 12.5 H.P Ac/1500 Rpm C 20:1	H.P Ac 12.5 H.P Ac
Four Bin Feeder
Motor Gear Box Drive	3 Nos. X 2 H.P Ac C 20:1 V Belt	6 H.P Ac
Bin Feeder
Number Of Bins Total Storage Capacity	Four (4 Nos) 30 M.T		*
Gathering Conveyor
Motor Gear Box Drive Belt Size	3.0 H.P Ac/1500 Rpm D-20:1 V Belt Gathering Size	3.0 H.P Ac
Slinger Conveyor
Belt Size Motor Gear Box Drive	Conveyror Size 2.0 H.P Ac/1500 Rpm D:5:1 V Belt	2.0 H.P Ac
Load Out Conveyor
Belt Size Motor Gear Box Drive Hopper Capacity Motor (Hyd.Power Pack)	Conveyror Size 3.0 H.P Ac/1500 Rpm D:20:1 V Belt 500 Kg. 2.0 H.P Ac/1500 Rpm	3.0 H.P Ac 2.0 H.P Ac

Unit	Specification	Motor H.P	Price
Controls Panel
Size Microprocessor Based Printer Systems Monitor Facility Load Cell Systems Auto/Manual Mode Dimmer State Systems Auto/Manual Burner Systems	2270 Lx 770 Bx 1270
Asphalt Tank
Storage Capacity Burner Capacity Sbitumen Pump Type Motor Pump Capacity Gear Box Drive	15 M.T X 1 No. 30 Lph Jacket Gear Pump 15:1 2 H.P Ac 40 Lph 3 15:1 Coupled	2 H.P Ac
Fuel Storage Tank
Storage Capacity	1500 Ltr.
